5747252-4
Manufacturer:
TE Connectivity
Mfr.Part #:
5747252-4
Datasheet:
Description:

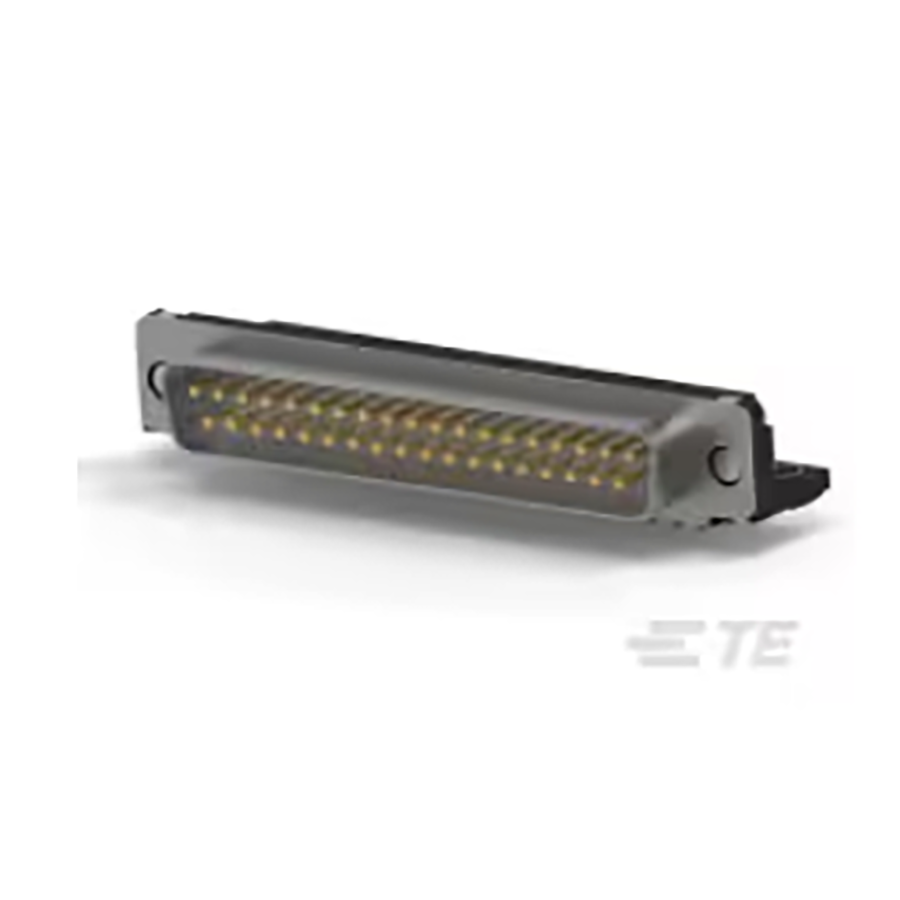

D-Sub Connectors Through Hole Plug Number of Positions:37 Solder Male
| Parameter | Value |
|---|---|
| Length | 69.32 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Material | Metal |
| Packaging | Tray |
| Voltage Rating | 125 V |
| Depth | 18.8 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Contact Plating | Gold |
| Lead Length | 3.175 mm |
| Contact Material(Contact Finish) | Brass |
| Pitch | 2.7686 mm |
| Type | Plug |
| Number of Terminals | 37 |
| Current Rating | 6 A |
| Flammability Rating | UL94 V-0 |
| Approvals | CSA, UL |
| Orientation | Right Angle |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Color | Black |
| Gender | Male |
| Number of Contacts | 37 |
| ELV | Compliant |
| Body Material | Metal |
| Hole Diameter | 3.048 mm |
| Max Supply Voltage (DC) | 250 V |
| Connector Type | Plug |
| Contact Type | Signal |
| Number of Positions | 37 |
| Number of Rows | 2 |
| Row Spacing | 2.8448 mm |
| Housing Material | Nylon |
| Number of Ports | 1 |
| Circuit Application | Signal |
| Max Voltage Rating (AC) | 250 V |
| Max Supply Voltage (AC) | 250 V |
| Housing Color | Black |
| Plating | Copper, Tin |
| PCB Thickness | 1.57 mm |
| Contact Gender | Male |
| Contact Shape | Round |
| Preloaded | Yes |
| Shell Material | Steel |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 weeks ago) |
| Sealable | No |
| Mating Connector Lock | With |
Stock: 9
Distributors
pcbx
pcbxUnit Price$9.33669
Ext.Price$9.33669
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $9.33669 | $9.33669 |
| 10 | $9.26829 | $92.68290 |
| 25 | $8.68609 | $217.15225 |
| 50 | $8.26711 | $413.35550 |
| 100 | $7.86834 | $786.83400 |
| 300 | $7.48881 | $2246.64300 |
| 500 | $7.12758 | $3563.79000 |
| 1000 | $6.78387 | $6783.87000 |
